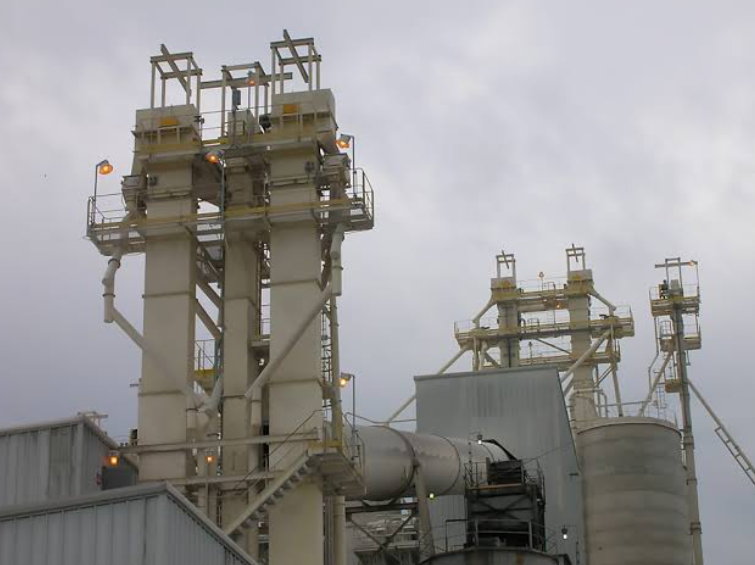

Bucket Elevator Capacity Calculation: Optimizing Tons Per Hour

When designing a bulk material handling system, capacity is one of the first specifications engineers need to establish. A Bucket Elevator that is too small can become a production bottleneck, while an oversized system may increase equipment and operating costs without providing meaningful benefits. Calculating the required tons per hour accurately helps ensure that the elevator matches the actual needs of the plant.

For industrial applications, capacity depends on more than simply the size of the buckets. Bucket volume, spacing, elevator speed, material bulk density, and loading efficiency all influence the final throughput. A properly engineered TONGLI Bucket Elevator can be configured around these factors to provide consistent vertical material handling. Cementl is also relevant when evaluating industrial conveying solutions where reliable capacity and continuous operation are essential.

Understanding Bucket Elevator Capacity

The basic capacity of a Bucket Elevator is determined by how much material each bucket carries and how frequently the buckets discharge material. In practical terms, engineers consider bucket volume, bucket spacing, operating speed, material density, and the percentage of each bucket that is actually filled.

The theoretical volume moved per hour can be estimated from the bucket capacity and the number of buckets passing a particular point during operation. However, theoretical capacity is rarely the same as actual production capacity because material does not always completely fill every bucket.

For this reason, a loading efficiency factor is normally considered when calculating real-world throughput. Material flow characteristics, feeding conditions, and bucket design can all influence this factor.

See also: Understanding Purepath Technology: Innovation in Oil Recycling

The Basic Capacity Calculation

A simplified approach starts with the volume of material carried by each bucket. If the bucket holds a specific volume and the elevator moves a known number of buckets per minute, the hourly volumetric capacity can be calculated.

That volume can then be converted into tons per hour using the bulk density of the material. For example, a material with a higher bulk density will produce a greater tonnage from the same bucket volume than a lightweight material.

The calculation can therefore be viewed conceptually as bucket volume multiplied by the number of bucket cycles, adjusted for filling efficiency, and then multiplied by material bulk density.

For a TONGLI Bucket Elevator, the final design calculation should use the actual bucket dimensions, spacing, speed, and material properties rather than relying on a generic capacity estimate.

Why Material Density Matters

Bulk density is one of the most important variables when converting volumetric capacity into tons per hour. Different materials can have dramatically different densities, even when they occupy the same volume.

Cement, clinker, limestone, fertilizer, grain, and other bulk products therefore cannot be assigned the same tonnage capacity simply because they use the same elevator configuration.

Moisture content can also influence material behavior and, in some cases, effective density. Materials that become sticky or compacted may not fill and discharge from buckets in the same way as dry, free-flowing products.

When selecting a TONGLI Bucket Elevator, providing accurate material information allows the equipment to be sized more appropriately for the intended application.

The Impact of Bucket Speed

Elevator speed directly affects how many buckets pass through the loading and discharge points each hour. Increasing speed can increase theoretical throughput, but higher speed is not automatically better.

Excessive speed may increase wear, vibration, power requirements, and the risk of inefficient discharge. The optimum speed depends on bucket design, material characteristics, elevator configuration, and the required lifting height.

A well-designed Bucket Elevator balances throughput with reliable operation. The objective should be to achieve the required tons per hour without unnecessarily increasing mechanical stress or energy consumption.

Accounting for Loading Efficiency

A common mistake in capacity planning is assuming that every bucket will always be filled to its maximum volume. In actual operating conditions, this may not happen.

Feeding conditions, material flowability, particle size, moisture, and loading configuration can all influence bucket fill. A practical capacity calculation therefore includes a filling or loading efficiency factor.

For example, if a bucket has a theoretical capacity of 100 units but typically operates at 80% effective fill, the actual material volume carried per bucket will be closer to 80 units. This difference becomes significant when multiplied across thousands of buckets and many operating hours.

Cementl can be valuable during equipment selection because industrial conveying systems should be designed around realistic operating conditions rather than theoretical maximums.

Designing for the Required Tons Per Hour

The target capacity should also include a reasonable operating margin. If a plant normally requires 100 tons per hour, designing an elevator to operate continuously at exactly 100 tons per hour may leave little room for variations in production demand.

A properly selected TONGLI Bucket Elevator should accommodate expected throughput while maintaining reliable operation. However, excessive oversizing should also be avoided because a much larger system can increase the initial investment, footprint, and energy requirements.

The best approach is to determine the normal production rate, expected peak demand, material characteristics, operating hours, and future expansion plans before finalizing the elevator specification.

Conclusion

Accurate Bucket Elevator capacity calculation is essential for maintaining efficient bulk material handling. Bucket volume, spacing, speed, loading efficiency, and material bulk density all contribute to the actual tons-per-hour performance.

A TONGLI Bucket Elevator should therefore be selected according to the specific material and production requirements rather than based solely on a catalog capacity. Proper sizing helps prevent bottlenecks while avoiding unnecessary equipment costs and excessive energy consumption.

By working with experienced industrial equipment manufacturers such as Cementl and using realistic operating data, businesses can develop a conveying system that delivers dependable throughput and supports long-term production efficiency.
